electric warp beam carrier Trolley Lifter Heald Frame Textile Industry

Name: electric warp beam carrier Trolley Lifter Heald Frame Textile Industry
Brand: Xianchuang
Price: 2300 USD

Best electric warp beam carrier Trolley Lifter Heald Frame Textile Industry wholesale

Brand Name : Xianchuang

Model Number : BLC-01

Place of Origin : China

MOQ : 5pcs

Price : USD 2300-3000 pcs

Payment Terms : L/C, T/T

Supply Ability : 500pcs per Month

Delivery Time : 4-7 weeks

Packaging Details : Wooden Box

Usage : Warp Beam Transport and Lift

Applicable Industries : Weaving Factory

Material : High-duty Steel Structure

Warranty : 13 months from date of shipment

Carrying capacity : 1000-1500kgs

Dimension(L*W*H) : As Customized

Core Components : Bearing, Pressure vessel, Gear, Pump

Contact Now

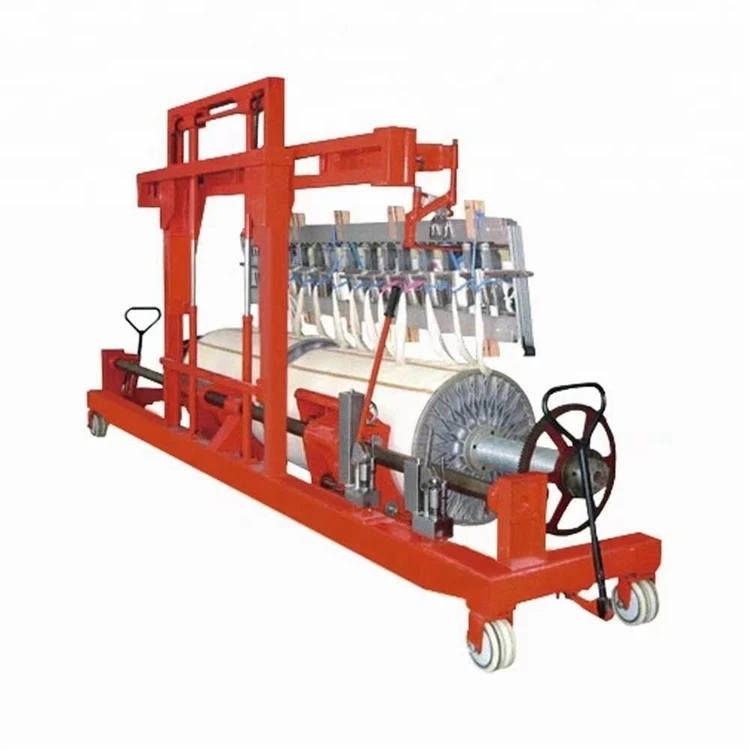

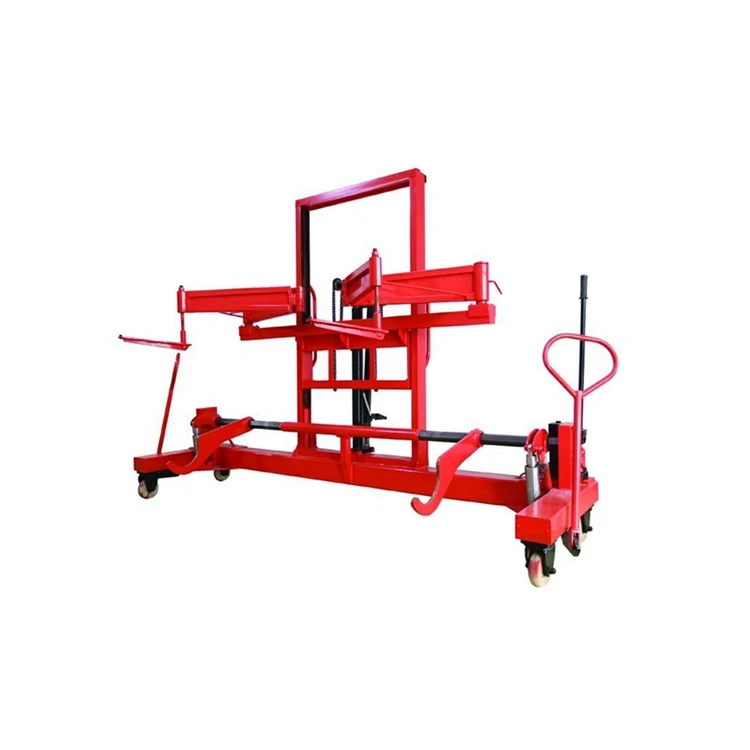

Textile Industry Electric Heald Frame Beam Lifter and Carrier

1.Alternative materials: mainly use high-quality square tubes, round steel, medium and thick plates, and export standard hydraulic components

2. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is treated with anti-rust paint to meet the customer's production demand

3. Useful: Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame.

Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm

4. Features:Four wheel synchronization, any Angle to turn and walk

Hydraulic vertical lifting of the heald frame, fast speed, high efficiency

Double cylinder synchronous lifting, balanced and stable, beam with heald frame on the machine at the same time

Lower bracket hook horizontal sliding adjustment of the upper shaft spacing

electric warp beam carrier Trolley Lifter Heald Frame Textile Industry
